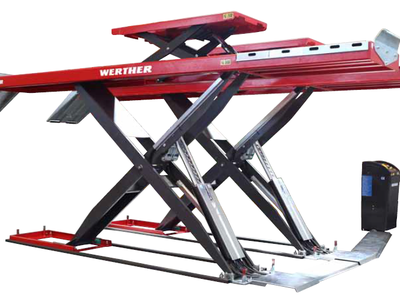

Werther Saturnus

Description

Hydraulic Scissor Lift with ramp

• More variations of ramp length and lifting capacity
• Recessed, or on floor installation
• Rails for rolling jack
• Hydraulic and elkectric synchronisation
• Pneumatic safety lock
• Explosion proof valves
• Overload protection
• Perfect for wheel alignment or headlamp beam setting
• Option: inverterrel- faster lifting speed
• N model: Base model with flat ramp
• AT model: Recess for turn plates in the front and already installed sliding plates in the back
• LT model: Lifting table
• ATLT model: Lifting table and Recess for turn plates in the front and already installed sliding plates in the back
• PG model: With play detector. Only suitable with AT and ATLT models

Saturnus EV40/45

Capacity: 4.000/4.500 kg

Lifting height: 2.100 mm (mounted on floor)

Closed height: 330 mm

Length and width of ramp: 4.800mm/ 700 mm

Saturnus 40R / 50R

Low profile scissor lift

Capacity: 4.000 kg / 5.000 kg

Lifting height: 2.180 mm ( mounted on floor)

Closed height: 200 mm

Length and width of ramp: 4800mm/ 740 mm
